CD 160-980 Industrial Dehumidifier
Condensation (Mechanical) Dehumidifier
Large-capacity ducted dehumidifiers purpose-built for warehouses, manufacturing facilities and high-humidity industrial spaces. Hot-dip galvanised steel housing, copper tube heat exchanger and three-phase power supply deliver uninterrupted industrial humidity control from 160 to 980 L/24h.
CD Series — Standard Models
* Capacity values measured at 32°C / 90% relative humidity.
| Model | Capacity (L/24h)* | Airflow (m³/h) | Power (kW) |
|---|---|---|---|
| CD-160 | 160 L/24h | 1,800 m³/h | 2.5 kW |
| CD-240 | 240 L/24h | 2,300 m³/h | 4.3 kW |
| CD-360 | 360 L/24h | 3,500 m³/h | 6.0 kW |
| CD-520 | 520 L/24h | 4,600 m³/h | 7.7 kW |
| CD-750 | 750 L/24h | 6,200 m³/h | 10.7 kW |
| CD-980 | 980 L/24h | 8,500 m³/h | 13.7 kW |

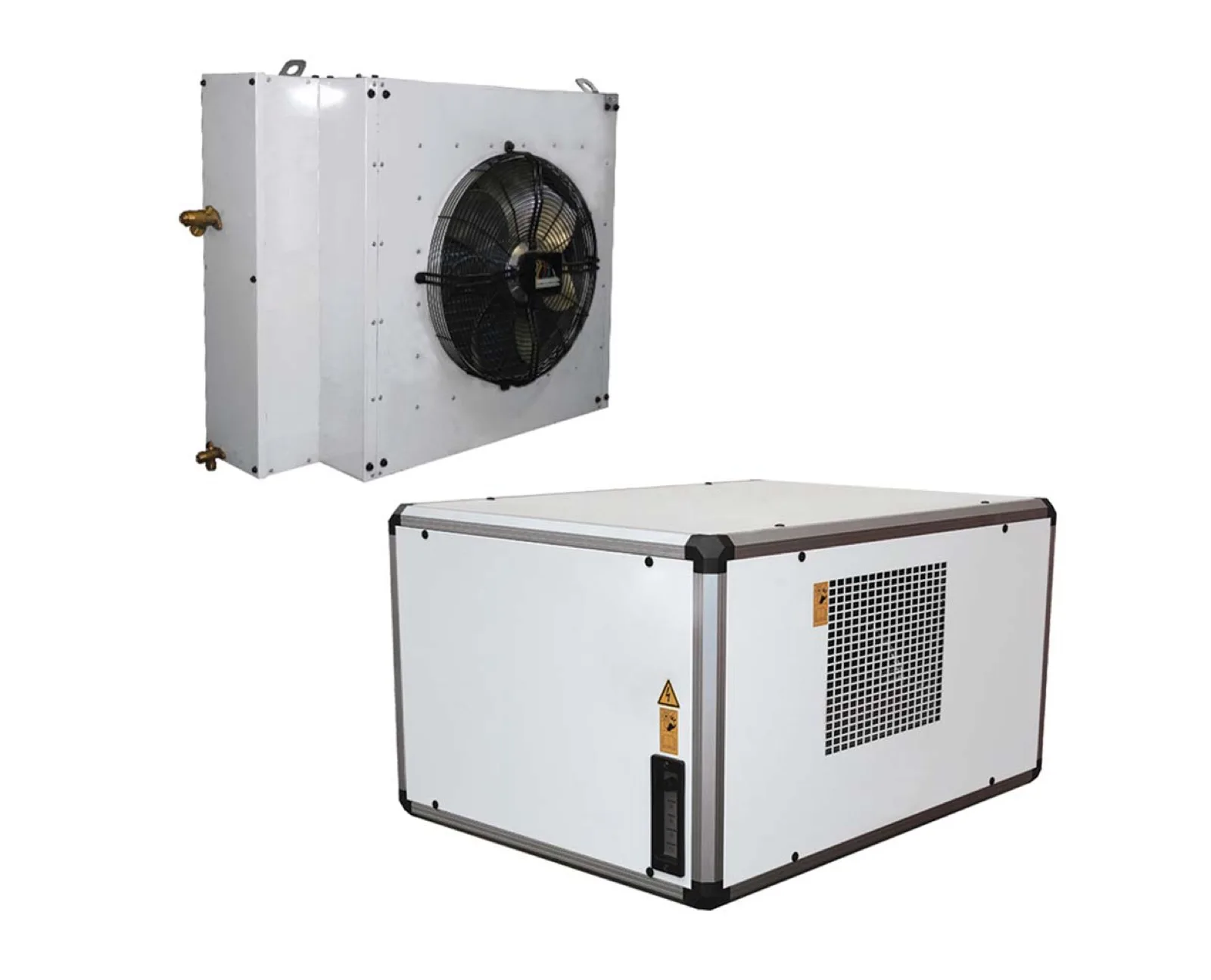

CD-TCR: Twin Condenser Industrial Dehumidifier
Standard condensing dehumidifiers cool humid air through the evaporator and then reheat the dry airstream across the internal condenser before returning it to the space. In this process, the work done by the compressor is transferred to the indoor environment as a thermal load, raising the ambient temperature. TCR (Twin Condenser Remote) technology was developed to eliminate this heat load entirely.
When the indoor humidity setpoint is reached, a solenoid valve activates and redirects hot compressor gas to an externally located condenser instead of the internal one.
Heat transfer from the internal condenser stops; only cooled dry air — not warm air — continues to be supplied to the space.
The thermal load is carried to the outdoor environment — a simultaneous cooling effect is achieved alongside humidity control, lowering the indoor temperature.
The compressor continues to use the full cooling capacity of the evaporator; dehumidification efficiency remains unchanged, only the thermal balance is re-established.
TCR Option Models
| Model | Capacity (L/24h)* | Airflow (m³/h) | Power (kW) |
|---|---|---|---|
| CD-240 TCR | 240 L/24h | 2,300 m³/h | 4.3 kW |
| CD-360 TCR | 360 L/24h | 3,500 m³/h | 6.0 kW |
| CD-520 TCR | 520 L/24h | 4,600 m³/h | 7.7 kW |
| CD-750 TCR | 750 L/24h | 6,200 m³/h | 10.7 kW |
| CD-980 TCR | 980 L/24h | 8,500 m³/h | 13.7 kW |
Materials & Structural Features
Hot-dip galvanised steel sheet with epoxy powder coating; high resistance to aggressive industrial environments and atmospheric conditions
Copper tube / aluminium fin evaporator and condenser; wide fin spacing for dust resistance and long service life
Rotary compressor on vibration dampers; quiet and efficient operation
Statically and dynamically balanced high-flow industrial fan; durable and robust construction
High-efficiency, washable and easily replaceable air filter
Electronic + thermostatic hot-gas defrost; enables effective operation at low ambient temperatures
Microprocessor digital panel; manages defrost cycles, compressor timer and alarm board
Standard duct flanges on both supply and return sides; easy integration into existing ventilation systems
Condensate tray for fixed drain connection. Optional condensate pump
Operates on standard 400V three-phase supply; directly compatible with the existing electrical infrastructure of industrial facilities
Model-by-Model Technical Data
* Capacity values measured at 32°C / 90% relative humidity.
| Parameter | CD-160 | CD-240 | CD-360 | CD-520 | CD-750 | CD-980 |
|---|---|---|---|---|---|---|
| Refrigerant | R410a | R410a | R410a | R410a | R410a | R410a |
| GWP | 2,088 | 2,088 | 2,088 | 2,088 | 2,088 | 2,088 |
| Compressor Type | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary |
| Power Supply | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz |
| Max. Power Consumption | 2.5 kW | 4.3 kW | 6.0 kW | 7.7 kW | 10.7 kW | 13.7 kW |
| Airflow | 1,800 m³/h | 2,300 m³/h | 3,500 m³/h | 4,600 m³/h | 6,200 m³/h | 8,500 m³/h |
| Max. Dehumidification Capacity | 160 L/24h | 240 L/24h | 360 L/24h | 520 L/24h | 750 L/24h | 980 L/24h |
| Operating Temperature | +10 – +40°C | +10 – +40°C | +10 – +40°C | +10 – +40°C | +10 – +40°C | +10 – +40°C |
| Operating Humidity | 30% – 99% | 30% – 99% | 30% – 99% | 30% – 99% | 30% – 99% | 30% – 99% |
| Defrost System | Electronic + Hot Gas | Electronic + Hot Gas | Electronic + Hot Gas | Electronic + Hot Gas | Electronic + Hot Gas | Electronic + Hot Gas |
| TCR Option | — | ✓ | ✓ | ✓ | ✓ | ✓ |
| Mounting Type | Ducted | Ducted | Ducted | Ducted | Ducted | Ducted |
