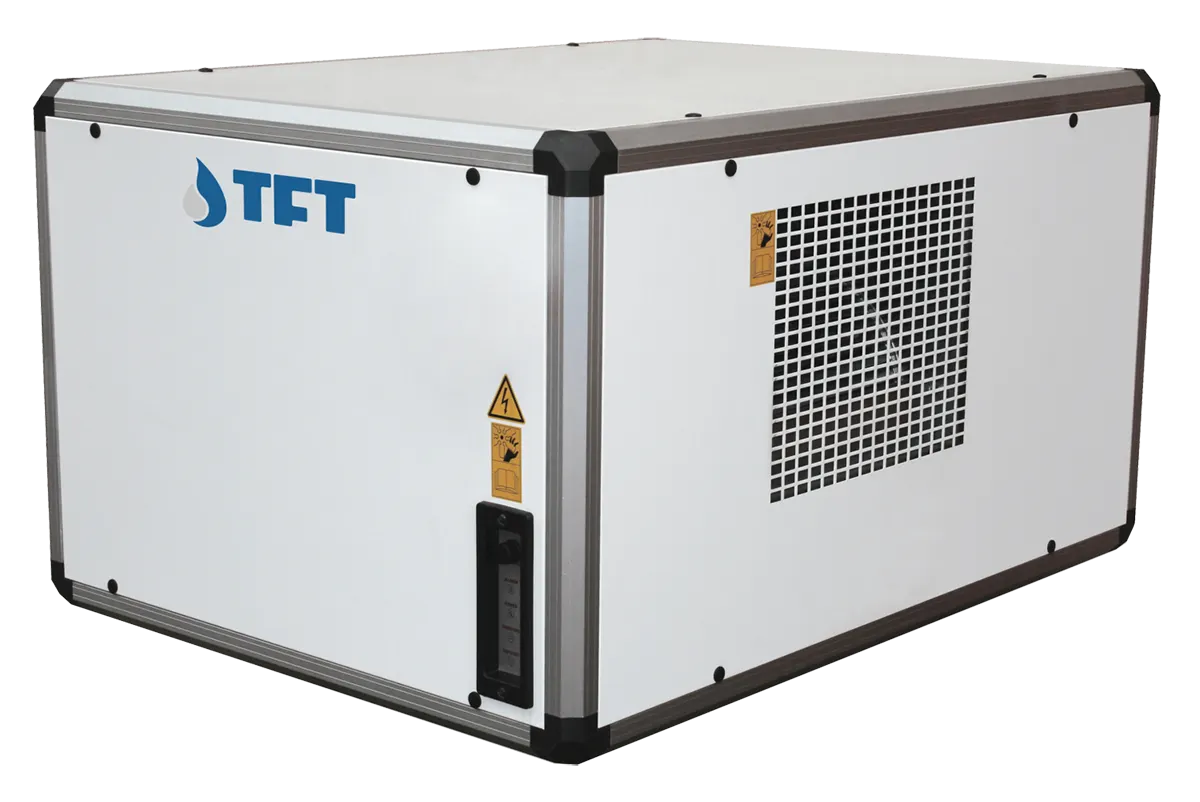

CDP 160-980 Pool Dehumidifier
Industrial condensing dehumidifiers purpose-built for the corrosive atmosphere of indoor swimming pools, featuring cataphoresis-treated coils and epoxy powder-coated galvanised steel housing. Capacity range 160 – 980 L/24h, scroll compressor, IP54 fan motors for reliable long-life operation under high humidity loads.
CDP Series Models
CDP 160
EntrySingle-phase power supply
Compact condensing dehumidifier for small to medium indoor pools. Single-phase 230V supply, galvanised steel epoxy-coated housing and cataphoresis coil offer an economical entry-level solution.
CDP 240
CompactScroll compressor technology
Compact dehumidifier with scroll compressor and three-phase supply for mid-sized pool facilities. Galvanised steel housing with cataphoresis coil treatment resists pool chemicals.
CDP 360
Mid RangeAluminium profile frame
Industrial dehumidifier with aluminium profile and galvanised sheet metal housing for large pool facilities. R407c refrigerant and cataphoresis coil for heavy-duty applications.
CDP 520
High CapacityStainless steel condensate tray
High-capacity dehumidifier for large commercial and industrial pool facilities. Stainless steel condensate tray and 0–150 Pa static pressure capability for duct system integration.
CDP 750
Large Facility180–300 Pa static pressure
Powerful dehumidification solution for large pool complexes and high humidity-load facilities. High static pressure capability allows connection to long ductwork runs.
CDP 980
MaximumHighest capacity in the series
Maximum-capacity pool dehumidification for large aquaparks, Olympic pools and industrial facilities. 1,330×1,460×1,260 mm housing, 180–300 Pa static pressure for full duct integration.
Dehumidification Capacity at Various Conditions
All values in L/24h. Operating temperature limits: 7°C – 35°C, relative humidity 45% – 99%.
| Condition (°C / %RH) | CDP 160 | CDP 240 | CDP 360 | CDP 520 | CDP 750 | CDP 980 |
|---|---|---|---|---|---|---|
| 32°C / 90% | 160 | 240 | 360 | 520 | 750 | 980 |
| 30°C / 80% | 126 | 188 | 300 | 440 | 620 | 830 |
| 27°C / 80% | 82 | 135 | 230 | 340 | 480 | 640 |
| 27°C / 60% | 70 | 103 | 170 | 250 | 340 | 470 |
| 25°C / 80% | 83 | 125 | 200 | 290 | 400 | 545 |
| 25°C / 60% | 60 | 90 | 145 | 210 | 290 | 395 |
| 20°C / 80% | 68 | 105 | 160 | 250 | 350 | 470 |
| 20°C / 60% | 48 | 70 | 140 | 170 | 240 | 320 |
| 15°C / 80% | 56 | 79 | 125 | 200 | 270 | 370 |
| 15°C / 60% | 37 | 55 | 80 | 115 | 160 | 215 |
| 10°C / 80% | 38 | 60 | 95 | 145 | 200 | 270 |
| 10°C / 60% | 22 | 35 | 55 | 80 | 110 | 150 |
Materials & Structural Features
Cataphoresis Coil Treatment
Copper tube coil with cataphoresis electrochemical coating for maximum protection against chlorine and other pool chemicals. Standard feature of the CDP series.
Housing (CDP 160-240)
Galvanised steel panels with epoxy powder coating; high resistance to atmospheric agents and aggressive environments. Removable panels for quick inspection.
Housing (CDP 360-980)
Aluminium profile frame with galvanised sheet metal panels; epoxy powder coated for heavy-duty industrial environments. Removable panels for fast access.
Compressor
Rotary compressor (CDP 160) or scroll compressor (CDP 240-980); mounted on vibration dampers with oil heater and thermal protection.
Fan
Galvanised steel centrifugal fan; statically and dynamically balanced. IP54 motors with 3-speed selection to match duct static pressure requirements.
Air Filter
High-efficiency washable polyurethane air filter; prevents coil fouling and simplifies maintenance.
Condensate Tray
Non-corrosive plastic (CDP 160-240) or stainless steel (CDP 360-980) condensate tray. ¾" fixed drain connection, optional condensate lifting pump.
Controls & Options
Integrated mechanical humidistat (standard). Optional remote digital humidistat or thermostat. Optional HOT GAS defrost for operation down to 3°C.
Model-by-Model Technical Data
* (1) At 35°C, 95% RH, without electric heater. Operating range: 7°C – 35°C, 45–99% RH.
| Specification | CDP 160 | CDP 240 | CDP 360 | CDP 520 | CDP 750 | CDP 980 |
|---|---|---|---|---|---|---|
| Refrigerant | R410a | R410a | R407c | R407c | R407c | R407c |
| Airflow (m³/h) | 1,800–1,400 | 2,300–1,600 | 3,500–3,000 | 4,600–3,800 | 6,200–5,800 | 8,500–8,000 |
| Static Pressure (Pa) | 0–125 | 0–150 | 0–125 | 0–150 | 180–300 | 180–300 |
| Capacity 32°C/90% (L/24h) | 160 | 240 | 360 | 520 | 750 | 980 |
| Capacity 27°C/60% (L/24h) | 70 | 103 | 170 | 250 | 340 | 470 |
| Power Supply | 230V/1/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz | 400V/3+N/50Hz |
| Power at 27°C/60% (kW) | 2.2 | 3.7 | 5.2 | 6.7 | 9.3 | 11.9 |
| Max. Power* (kW) | 2.5 | 4.3 | 6.0 | 7.7 | 10.7 | 13.7 |
| Max. Current* (A) | 11.5 | 9.1 | 12.5 | 15.6 | 18.2 | 22.9 |
| Sound Pressure – 3m (dB-A) | 54 | 55 | 61 | 65 | 67 | 70 |
| Sound Power Level (dB-A) | 73 | 74 | 80 | 84 | 86 | 89 |
| A – Width (mm) | 580 | 580 | 720 | 920 | 920 | 1,330 |
| B – Height (mm) | 980 | 980 | 1,180 | 1,180 | 1,180 | 1,460 |
| C – Depth (mm) | 685 | 685 | 900 | 900 | 900 | 1,260 |
| Empty Weight (kg) | 66 | 72 | 150 | 170 | 260 | 320 |
