Is the SKR safe for residential use?

Yes. The SKR is a product designed for residential and small commercial spaces, equipped with low-voltage safety systems. Dry-run protection and overheat protection are standard.

Is the SKR capacity sufficient?

The SKR is designed for typical residential and small office spaces with a capacity of 3–5 kg/hr. For larger spaces, the SKE4 or other industrial models are recommended. You can use our contact form for capacity calculation.

What is the permanent cleanable chamber?

Instead of using plastic cylinders, the SKR has a permanent stainless steel chamber. This chamber can easily be removed and cleaned once or twice a year; it does not require replacement and provides long-term cost savings.

made inCanada

🏠Resistive Electric (Residential)

SKR Residential Electric Humidifier

Name: SKR Residential Electric Humidifier
Brand: Neptronic

Resistive Electric (Residential)

Residential electric humidifier, 2–5.5 kg/hr. Permanent cleanable stainless steel chamber, reliable siphon drain, quiet operation <40 dB(A).

CSACE

Compare

SKR

Capacity

2 – 5.5 kg/hr

Capacity

2 – 5.5 kg/hr

Voltage

120 Vac or 230 Vac

Noise Level

< 40 dB(A)

Chamber

Stainless Steel

Warranty

2 Years

SKR

Resistive Electric (Residential)

SKR is a compact electric steam humidifier designed for apartments and residential spaces. Easily installed with through-the-wall mounting, suitable for ductless spaces. No plastic cylinders; the permanent stainless steel chamber provides long-lasting and hygienic operation. Quiet operation below 40 dB(A) makes it suitable for living spaces.

Applications

Residences and apartments

Offices and small commercial spaces

Museums and art galleries

Medical clinics

Features

On/Off or modulating operation
Permanent cleanable stainless steel evaporation chamber
Reliable siphon drain (no drain valve or external tap required)
Low noise: less than 40 dB(A) at 3 ft / 1 m
Includes 6 ft (1.8 m) flexible steam hose
Through-the-wall installation for ductless spaces
Maintenance-free operation
Pure and sterile steam production
Remote SDU model with modern design
2-year warranty

Technical Specifications

ParameterValue

Capacity2 – 5.5 kg/hr

Voltage120 Vac or 230 Vac

Noise Level< 40 dB(A)

ChamberStainless Steel

Warranty2 Years

SKR Advantages

Residential Electric Humidifier

Humidifying your home with a Neptronic SKR residential steam humidifier protects you from winter ailments. It reduces dry skin, sinus problems and scratchy throats by creating a healthier, more comfortable living environment. Proper humidity levels also protect valuables from permanent damage.

Steam capacity from 2 to 5.5 kg/hr

Permanent cleanable stainless steel evaporation chamber

Patented siphon drain requires no drain valve or external tap

Environment friendly — no plastic cylinders to replace

On/Off operation, modulation optional

Drain water tempered to below 60°C

Self-cleaning heating elements

Capacity Table

Output and Consumption

SKR residential humidifier model capacities and power values.

Model	Capacity	Power	Voltage	Amperage	Width	Height	Depth	Height with SDU
VILLA SKR3E	3 kg/hr	2.3 kW	230 Vac/1 ph	10 A	267 mm	368 mm	229 mm	500 mm
CHATEAU SKR4E	3.75 kg/hr	2.8 kW	230 Vac/1 ph	12.2 A	267 mm	368 mm	229 mm	500 mm
BELVEDERE SKR5E	5 kg/hr	3.7 kW	230 Vac/1 ph	16.1 A	267 mm	368 mm	229 mm	500 mm

Typical Installation

Duct and Fan Distribution Options

The SKR humidifier is typically used with a dispersion tube installed through a duct. However, we offer fan distribution installations as well for applications where a duct system is not available.

1 On/Off humidifier complete with 1 remote alarm dry contact

1 dry contact to start the HVAC fan on a call for humidity

1 S.A.M. stream absorption manifold for duct distribution

6 ft (1.8 m) flexible steam hose for steam distribution

System Overview

System Components

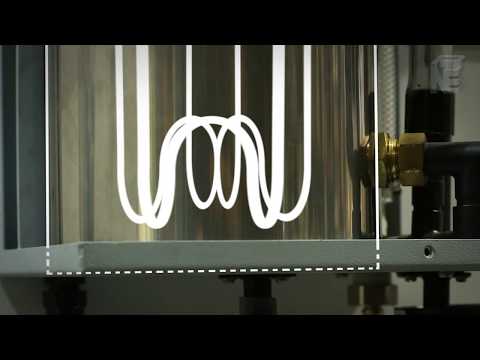

Evaporation Chamber

Evaporate Water, Not Money!

The Neptronic SKR humidifier includes a permanent, reusable stainless steel chamber instead of a disposable plastic bottle that must be replaced at least once a year, resulting in thousands of dollars of savings. These savings will more than pay for the initial cost of the humidifier.

Duct Distribution

Duct Distribution Installation

For a duct distribution installation, the SKR requires a S.A.M. Steam Distribution System to disperse steam.

S.A.M. Technology

Stream Absorption Manifold

Short absorption distance (less than 155 cm)
Stainless steel tube with brass nozzles
Nozzles prevent condensate from escaping the duct
Inclined steam dispersion tube to return condensate back to humidifier or steam trap

S.A.M.: For models SKR4E and SKR5ES.A.M.E2: For models SKR3E

Fan Distribution

Fan Distribution Installations

The fan distribution installation option is ideal to supply steam directly with an SDU (steam distribution unit) into a room without a duct network or for a localized area.

Common Features of SDU

Quiet steam distribution

Powered and controlled by the humidifier

Air pressure switch included

Fan will keep running for four minutes after steam production has stopped to prevent any condensation

Integrated SDU

Integrated Steam Distribution Unit

This option is typically used in small stores, small warehouses and laboratories where the visibility of the unit is not an issue.

BACK

FRONT

Remote SDU

Remote Steam Distribution Unit

Ideal for condos/apartments without a duct network, the remote SDU is designed for through-the-wall installation to provide humidification directly into the room. This option is typically applied in residential applications and small offices to keep the elegance of the room.

Distribution unit is installed through a wall partition

SKR humidifier is installed in a closet or other closed location

Modern design of SDU front grill blends into any decor

Low noise (less than 40 dBa at 1 m)

Standard, 230 Vac power supply
