Reactivation (Regeneration)

Detailed Explanation

Reactivation (regeneration) is the thermal process at the heart of desiccant rotor systems. To prevent water molecules adsorbed in the process zone from staying bound to the rotor, approximately one-quarter of the rotor is continuously washed by high-temperature reactivation air. This air dries the silica gel while carrying its moisture and exhausting it.

Reactivation temperature directly determines the outlet dew point: • 80–100°C: moderate dehumidification, outlet between −10 and −20°Cdp • 100–120°C: standard industrial application, −20 to −45°Cdp • 120–140°C: aggressive silica gel, −45 to −55°Cdp • 160–220°C: zeolite/molecular sieve, below −55 to −70°Cdp

Reactivation energy sources: 1. Electric resistance heater — simple, easy control, but the most expensive OPEX 2. Natural gas burner — low OPEX, requires flue and combustion air 3. Boiler return steam/hot water — waste heat use, most economical 4. Waste heat (compressor, furnace exhaust, solar) — custom engineering, lowest marginal cost 5. Hydrogen combustion (next generation) — pilot projects in Europe, carbon-free reactivation

Reactivation Energy Calculation

Reactivation heat load: Qreact = mreact × cp × (Treact − Tambient) + mremoved × hfg

Qreact: reactivation heat load (kW) mreact: reactivation air mass flow (kg/s) — 25–35% of process air cp: specific heat of air = 1.012 kJ/kg·K Treact: reactivation temperature (°C) Tambient: reactivation air inlet temperature (°C) mremoved: moisture removed by the rotor (kg/s) hfg: 2,501 kJ/kg (latent heat of water vaporization)

Reactivation Energy Ratio (RER): RER = Qreact / mremoved

Good design: RER < 4,000 kJ/kg moisture removed (pure evaporation is 2,501 kJ/kg) Poor design or older system: RER 7,000–10,000 kJ/kg

Reactivation heat recovery (sandwich plate exchanger or rotor pre-heating) reduces RER by 20–35%.

Practical Example

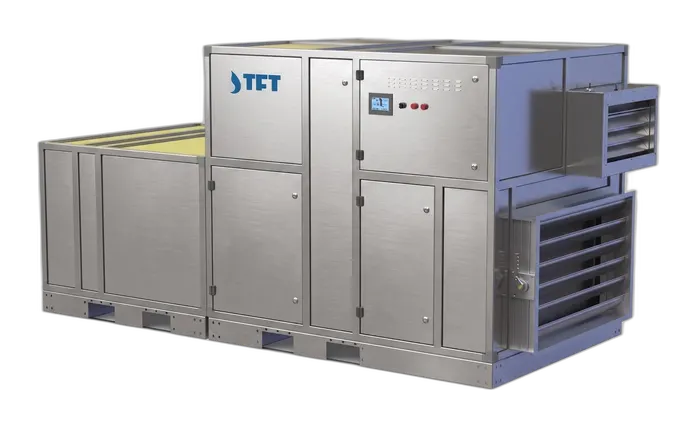

Compare two reactivation energy options at the same facility. NKT AD3000 model rotor, 5 kg/h moisture removal capacity, 8,760 hours/year operation:

Annual moisture removal: 5 × 8,760 = 43,800 kg RER = 5,500 kJ/kg → total reactivation energy: 240.9 GJ/year = 67 MWh

Option A — Electric resistance heater: • Efficiency: 98% • Annual energy input: 68 MWh electric

Option B — Natural gas burner: • Efficiency: 88% (combustion + heat transfer) • Annual gas consumption: 76 MWh thermal / 10.64 kWh/m³ ≈ 7,150 m³

Comparison: at Türkiye industrial tariff ratios, the unit thermal cost of natural gas is roughly 3× lower than electricity, so the gas burner provides approximately 55–60% OPEX savings versus the electric resistance heater. The burner option's additional CAPEX (flue + burner + safety equipment) typically pays back in 18–30 months. If steam or condenser-recovered heat is used, the marginal energy cost drops to a minimum and payback shortens to 6–10 months.

Engineering Note

Considerations in reactivation design:

• Reactivation air source — drawing from the same source as process air sometimes causes "reactivation with dry air", giving a lower outlet dew point. However, if cross-contamination risk exists, a separate fresh air intake is essential. • Reactivation air exhaust — must be discharged outside the building, never returned to the room; this humid and warm air creates mold risk. • Modulation — continuous high-temperature reactivation = over-drying + wasted energy. Modulating (PID) reactivation control adjusts temperature to outlet dew point, saving 15–25% energy. • Fire safety — oil, dust, or organic buildup near the reactivation heater creates fire risk; periodic cleaning and fire detection are essential. • Heat recovery — reactivation exhaust air is at 60–80°C; pre-heating the reactivation inlet via a plate exchanger reduces RER by 20–35% and is standard in NKT next-generation rotor units.

Reactivation energy management constitutes 60–80% of the annual energy bill for silica gel rotor systems; it is therefore the most critical design parameter in the investment decision.
